6.Install Database on Ec2(Grafana)

8. Monitoring 2(Grafana)

8.1 설치(Public EC2)

• Public EC2에 설치

sudo apt-get install -y apt-transport-https sudo apt-get install -y software-properties-common wget sudo wget -q -O /usr/share/keyrings/grafana.key https://apt.grafana.com/gpg.key  ## repository 연결 echo "deb [signed-by=/usr/share/keyrings/grafana.key] https://apt.grafana.com stable main" | sudo tee -a /etc/apt/sources.list.d/grafana.list  sudo apt-get update  ## Install the latest OSS release: sudo apt-get install grafana  ## reload daemon and start server, check server  sudo systemctl daemon-reload sudo systemctl start grafana-server sudo systemctl status grafana-server  ## Configure the Grafana server to start at boot: ## sudo systemctl enable grafana-server.service

8.2 Security Group

• Public Security Group
  • Port : 3000
  • Source : My IP
• 초기 id 비번 admin/admin
  • 변경 함

8.3 테스트

• public ec2 ip:3000 접근

8.4 DataSource

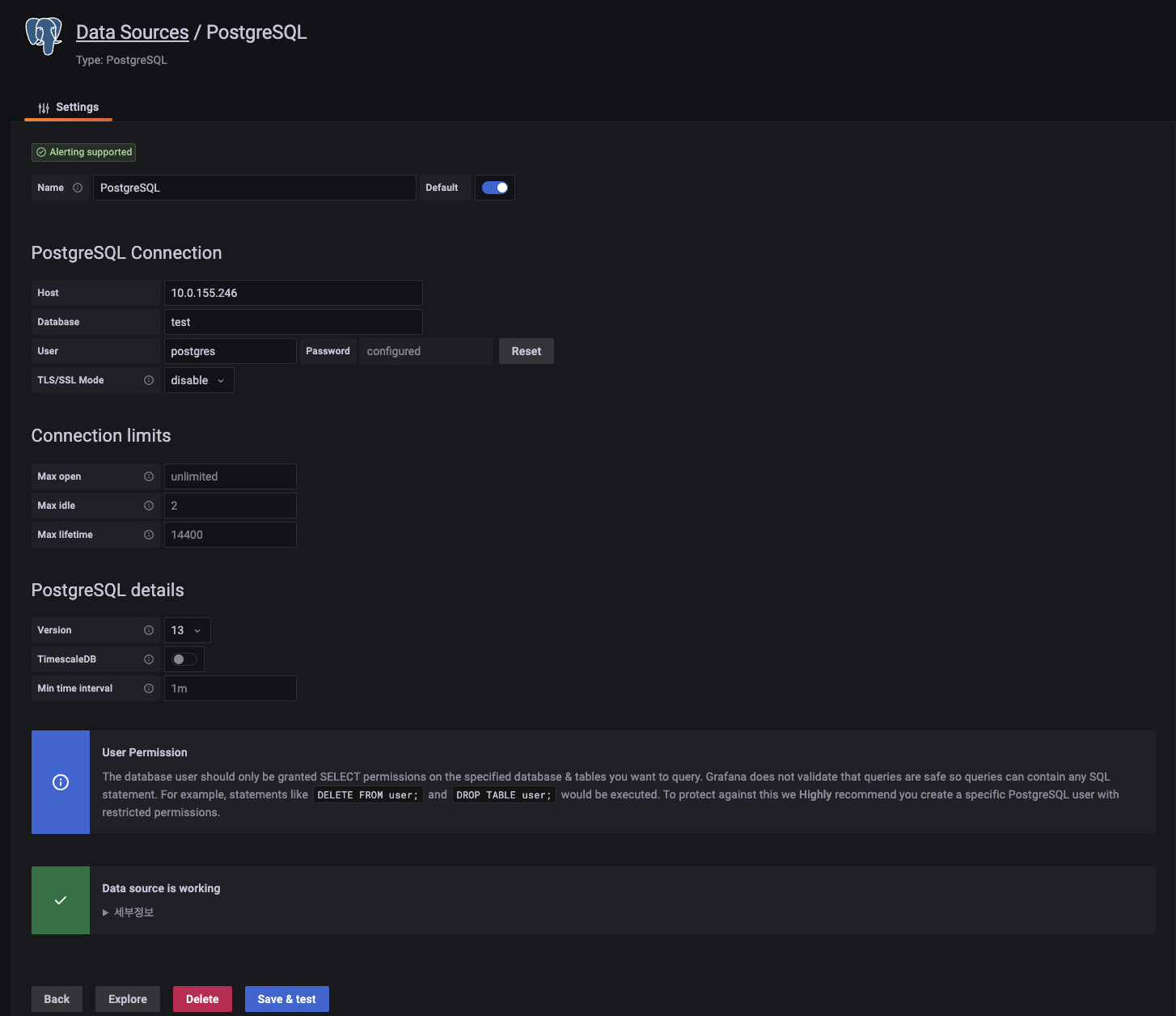

8.4.1 PostgreSQL(Direct 연결)

• Private EC2 IP
• SSL 등록이 안되어있으니 SSL 은 Disable
• Save & Test → Connection OK 또는 Data source is working
• 매번 Pull을 진행할때마다 DB에 요청하므로 중간 매개체가 있는 것이 좋다 → Prometheus

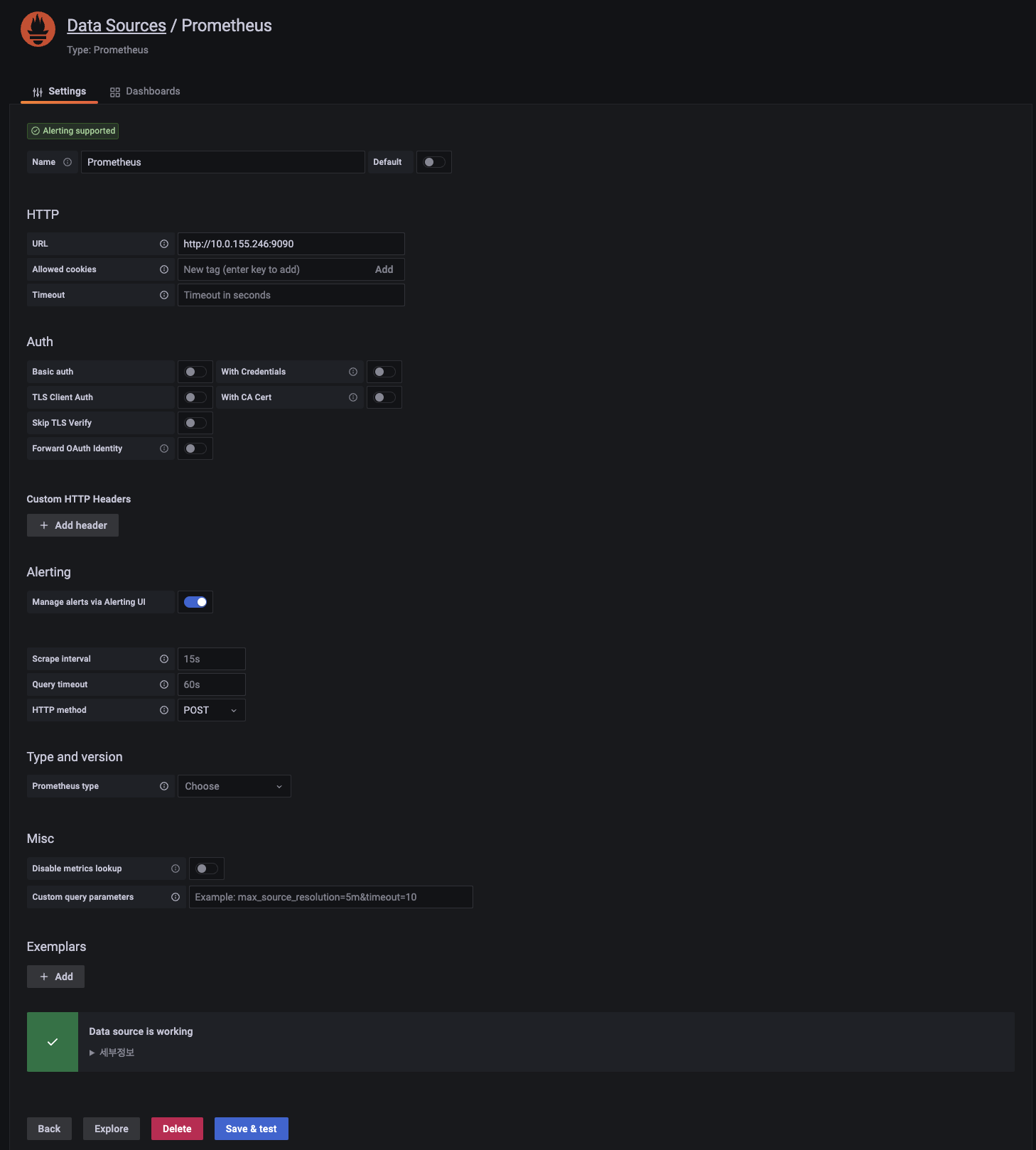

8.4.2 Prometheus

• HTTP URL : http://privateec2ip:9090
• Save & Test → Data source is working

8.5 Dashboard

8.5.1 Template

• Dashboard Template을 보고 마음에 드는 항목을 선택하여 적용하면 됨.

PostgreSQL Database | Grafana Labs

• Template ID 복사 해서 Import 에 Template ID를 입력.

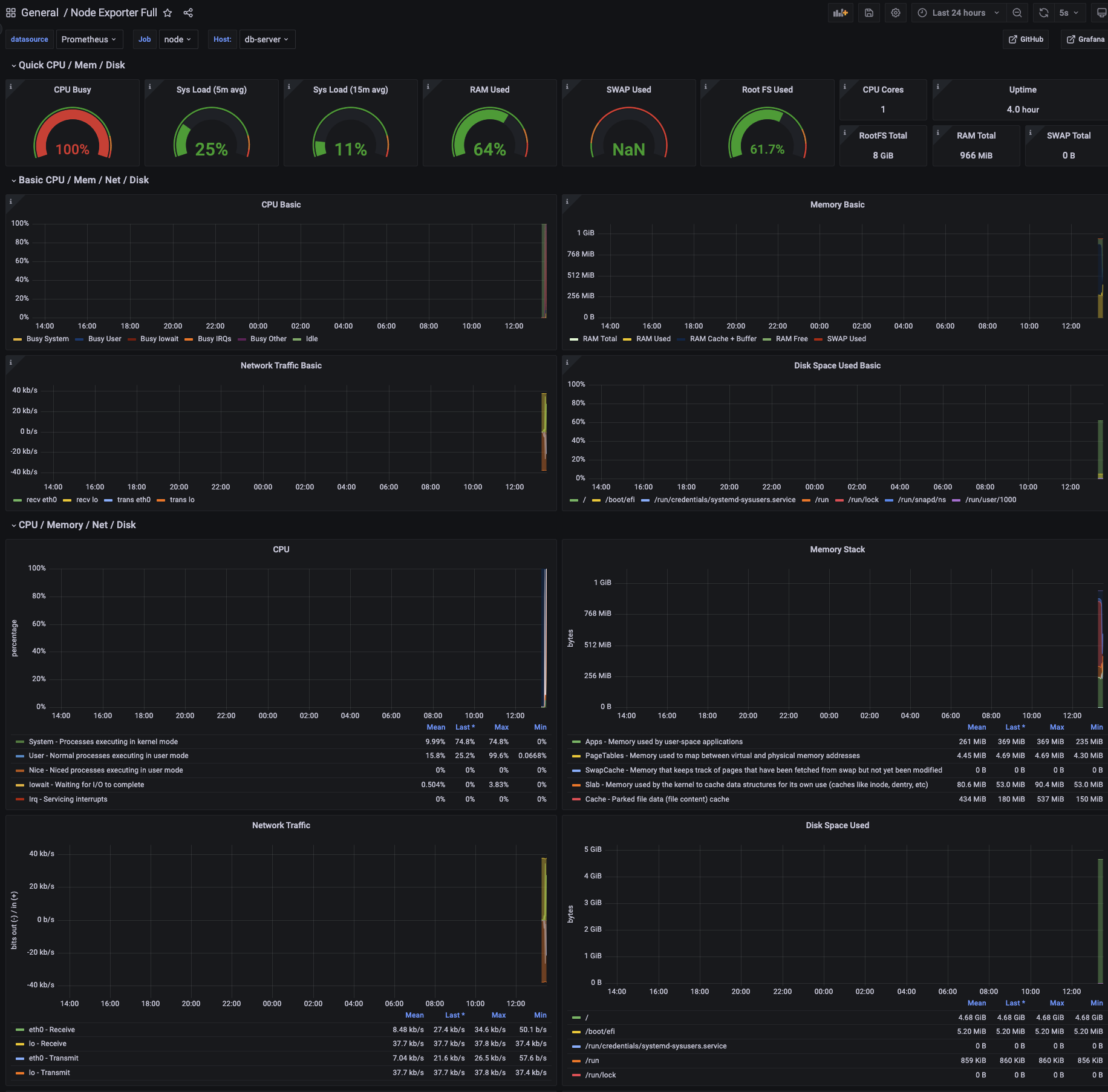

Node Exporter Full | Grafana Labs

8.5.2 부하테스트

• 1차 PostgreSQL은 Data Import를 통해 테스트(스크린샷 X)

sudo apt-get install -y stress  stress --cpu 1 --timeout 600 # cpu test 100% 다 쓰도록  stress --vm 2 --vm-bytes 200m # ram test 2프로세스  메모리 200m 사용하도록\

9 . 기타(MongoDB, Redis Prometheus)

9.1 Mongo DB 참고

[Grafana]Grafana에 MongoDB 데이터 불러오기

How To Monitor MongoDB with Grafana and Prometheus on Ubuntu 20.04 | DigitalOcean

9.2 Redis 참고

[Prometheus] Redis 모니터링 구성

10. Monitoring 3(MongoDB)

해당 내용은 진행이 안될 수 도 있음을 참고하시기 바랍니다.

mkdir mongodb-exporter cd mongodb-exporter  wget https://github.com/percona/mongodb_exporter/releases/download/v0.7.1/mongodb_exporter-0.7.1.linux-amd64.tar.gz  tar xvzf mongodb_exporter-0.7.1.linux-amd64.tar.gz rm mongodb_exporter-0.7.1.linux-amd64.tar.gz  sudo mv mongodb_exporter /usr/local/bin/

10.2 Enabling MongoDB Authentication

mongosh  use admin  db.createUser({user: "test",pwd: "testing",roles: [{ role: "clusterMonitor", db: "admin" },{ role: "read", db: "local" }]})

10.3 MongoDB URI to Environment variable

vi ~/.profile  export MONGODB_URI=mongodb://test:testing@localhost:27017  env | grep mongodb ## outpout  PWD=/home/ubuntu/tmp_file/mongodb-exporter MONGODB_URI=mongodb://mongodb_exporter:password@localhost:27017

10.4 Creating a Service for the MongoDB exporter

cd /lib/systemd/system/ sudo vi mongodb_exporter.service  [Unit] Description=MongoDB Exporter User=ubuntu  [Service] Type=simple Restart=always ExecStart=/usr/local/bin/mongodb_exporter  [Install] WantedBy=multi-user.target

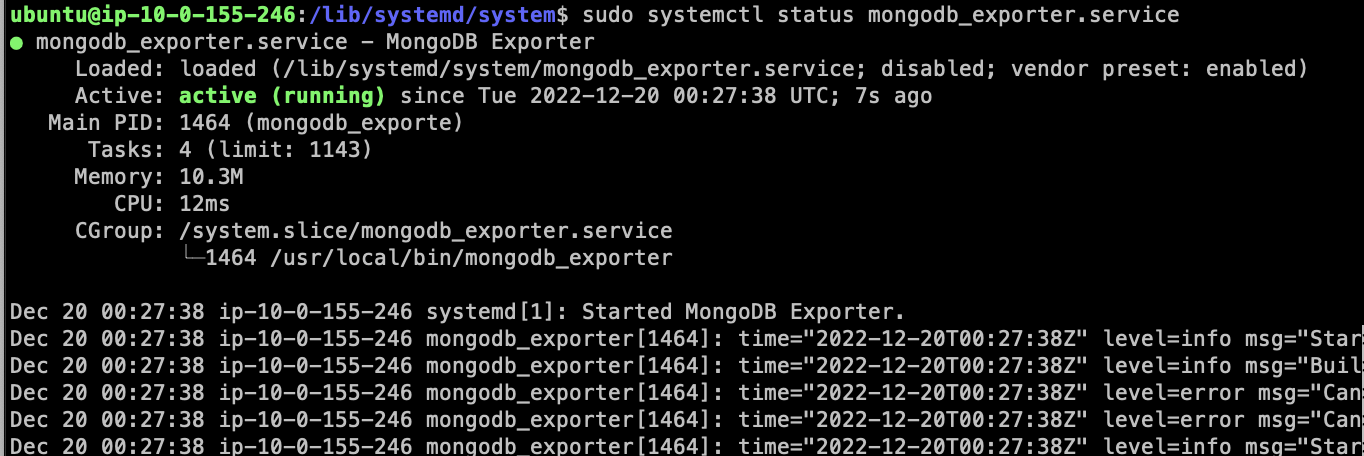

10.5 Reload Daemon and Start Service

sudo systemctl daemon-reload sudo systemctl start mongodb_exporter.service sudo systemctl status mongodb_exporter.service

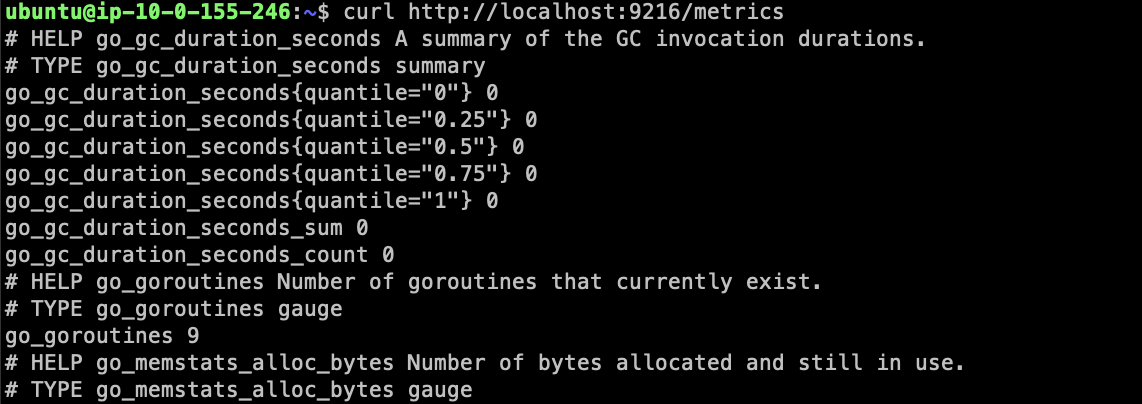

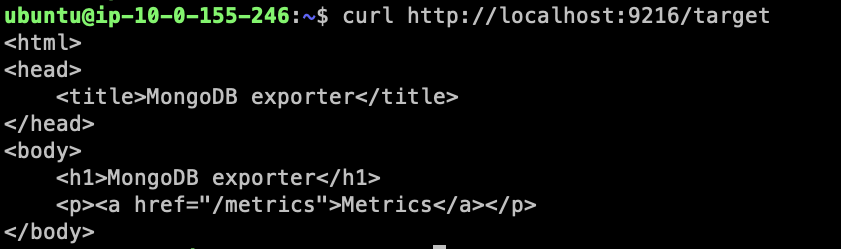

10.6 Check Metrics (Port 9216)

• Port : 9216 을 통해 Metrics 정보 확인

cd ~ sudo curl http://localhost:9216/metrics

10.7 Prometheus Configuration

• MongoDB Exporter 추가

## sudo vi /etc/prometheus/prometheus.yml  vi prometheus.yml  - job_name: "mongodb"     static_configs:       - targets: ["localhost:9216"]         labels:           instance: mongodb

10.8 Grafana Dashboard 추가

MongoDB Overview | Grafana Labs

11. Monitoring 4(Redis)

11.0 Redis 설정 변경

redis-cli  CONFIG SET protected-mode no >OK

11.1 DOWNLOAD

wget https://github.com/oliver006/redis_exporter/releases/download/v1.24.0/redis_exporter-v1.24.0.linux-amd64.tar.gz  tar -zxvf redis_exporter-v1.24.0.linux-amd64.tar.gz  sudo mv redis_exporter /usr/local/bin/

11.2 Systemd 등록

sudo vi /etc/systemd/system/redis_exporter.service  [Unit] Description=Redis Exporter Wants=network-online.target After=network-online.target  [Service] User=ubuntu Group=ubuntu Type=simple ExecStart=/usr/local/bin/redis_exporter \     -web.listen-address ":9121" \     -redis.addr "redis://10.0.157.31:6379" \  [Install] WantedBy=multi-user.target

11.3 Systemd 실행

sudo systemctl daemon-reload sudo systemctl enable redis_exporter sudo systemctl start redis_exporter

11.4 테스트

curl http://localhost:9121/target curl http://localhost:9121/metrics

11.5 Prometheus 수정.

sudo vi /etc/prometheus/prometheus.yml  - job_name: "redis"     static_configs:       - targets: ["localhost:9121"]         labels:           instance: redis-db

11.6 서비스 수정

sudo systemctl restart prometheus

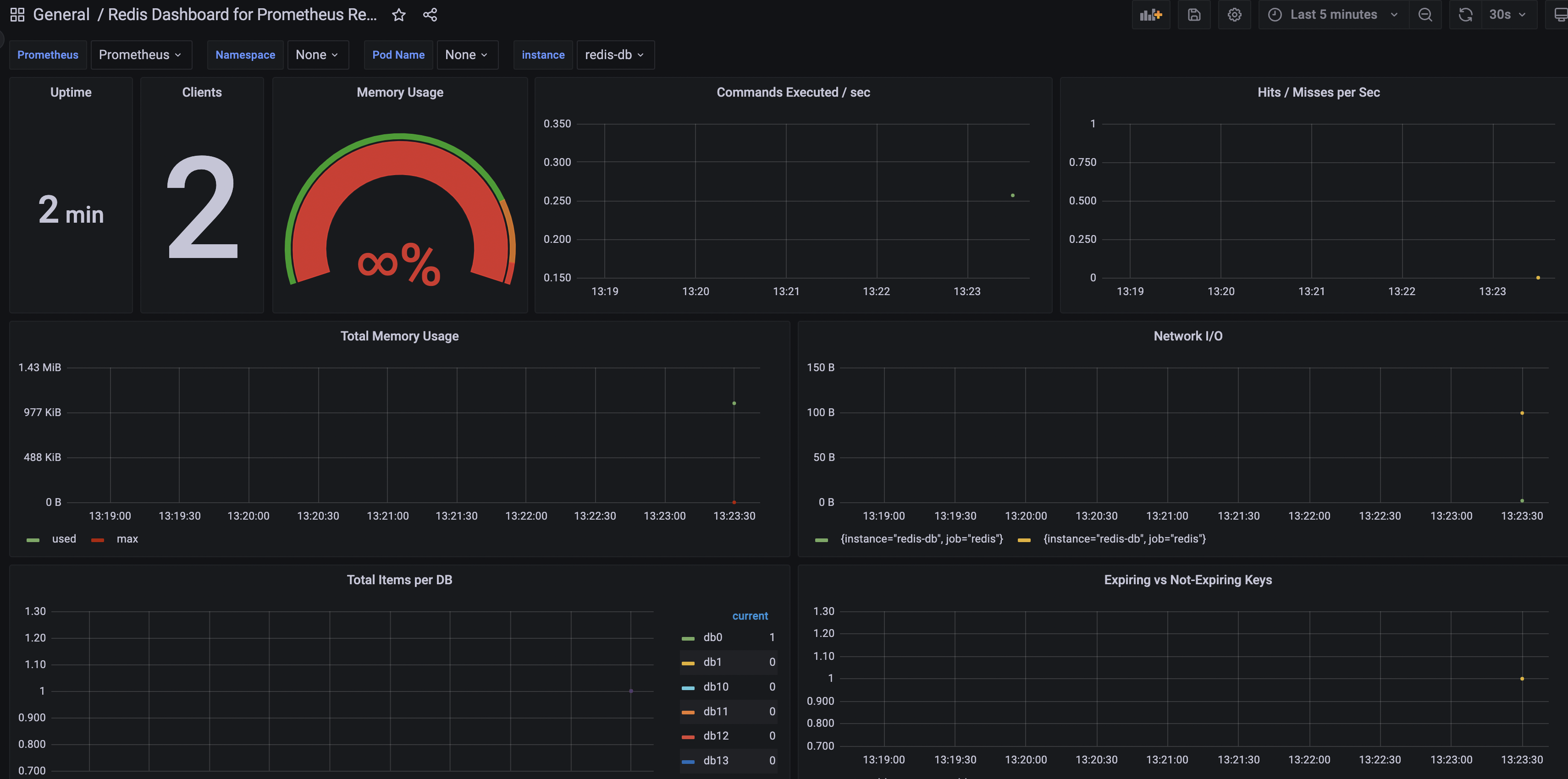

11.7 Dashboard 추가

• ID : 11835 추가
